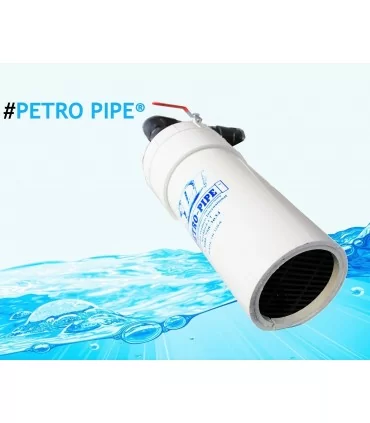

PI616-FR3 natural ester filtration set for metal retention tank

PETRO-PIPE® filtration set for the drainage of natural ester contaminated rainwater was created to allow you to quickly and easily mount a filter on a metallic retention tank, a bund wall or into a concrete containment pit.

The products that make up the set can be purchased separately.

Read more
€1,827.00
In stock
72h
Size chart
Women's clothing size
SizeXSSML
Euro 32/34 36 38 40
USA 0/2 4 6 8
Bust(in) 31-32 33 34 36
Bust(cm) 80.5-82.5 84.5 87 92
Waist(in) 24-25 26 27 29
Waist(cm) 62.5-64.5 66.5 69 74
Hips(in) 34-35 36 37 39
Hips(cm) 87.5-89.5 91.5 94 99
How To Measure Your Bust

With your arms relaxed at your sides, measure around the fullest part of your chest.

How To Measure Your Waist

Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.

Reference:
Kit PI616-FR3-inox
Description

Part of the SPI® filter technology, the PETRO-PIPE® range is the United Kingdom and European reference for natural ester contaminated rainwater filter cartridges for medium volume retention.

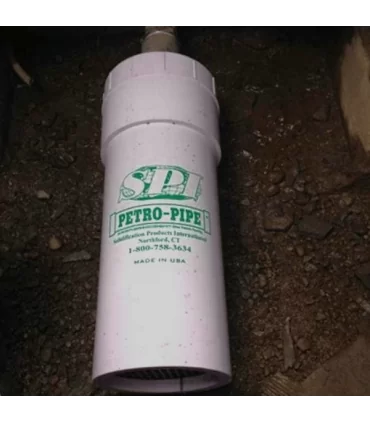

Easy to use, the PETRO-PIPE® SET was created to allow a quickly and easily installation of a filter on a metallic retention tank outlet. It fits on any low point and drain valve. Preferably installed with a 25° angle inclination.

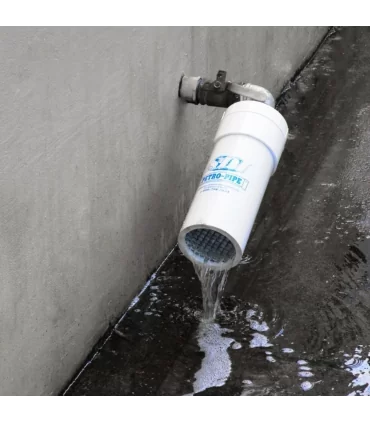

Patented system, ideal for outdoor retention tanks and pits (metallic or concrete).

The filtration set includes:

        - 1 PI616-FR3 filter for natural esters (FR3 Cooper, MIDEL EN,...),

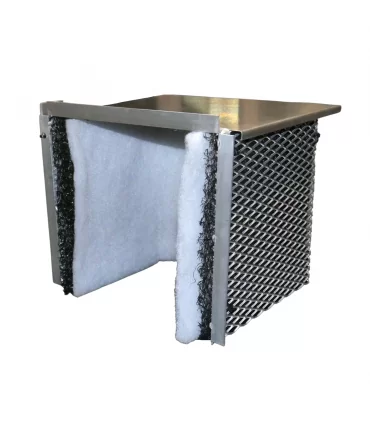

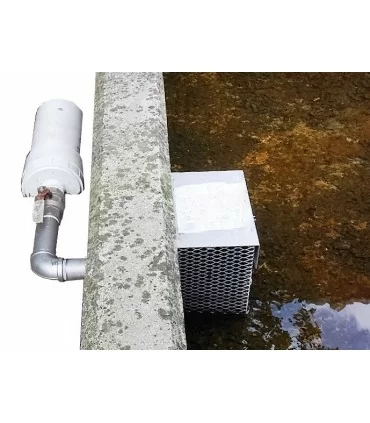

        - 1 PFB0810 pre-filtration box,
        - 1 stainless steel 90° elbow, 2" female to be screwed onto the retention,
        - 1 stainless steel 1/4 turn valve F/F 2",
        - 1 roll of teflon to ensure waterproof.

Read more
Product Details
Kit PI616-FR3-inox
Details of the range
           References Total length (mm)  Width Ø (mm)     Weight (kg)     Flow rate when new (L/min)
 PI616M2 450 150 5 16
 PIF616 450 150 5 16
 PI616-FR3 450 150 5 5
 PI620M2-SYNBLOC  500 200 7 12

The PFB pre-filtration box to be purchased separately.

Product videos

Manufacturer

SPI® has been an Eastern American manufacturer based in Connecticut for 30 years. Bill Gannon founded SPI® in 1991 to develop a technology for solidifying polluting oils. His experience as Vice President of Liquid Waste Technologies from 1985 to 1991 and the Exxon Valdez disaster in 1989 were key elements in the creation of SPI®.

In the early years, SPI® focused on waste treatment by creating solidifiers for oils (Oil Bond) and for water (WaterBond). Then, in the years that followed, SPI® naturally turned to pollution prevention.

SPI® offers its patented PETRO-PIT®, PETRO-PLUG®, PETRO-PIPE® and PETRO-BARRIER® products to all customers who need to secure their retention equipment with a passive and inexpensive solution, thus allowing good drainage of rainwater without risk of overflow and therefore pollution.

No oil has ever drained from any SPI® filter. SPI® filters comply with American EPA SPCC standards, European and French standards on water treatment in light hydrocarbon separators as well as the water law (hydrocarbon content of water at the filter outlet less than 5 ppm , ICPE compliant). For three decades, thousands of installations have been protected by SPI® products in North America, Europe and Latin America. Its approval with the largest petrochemical industries, power companies and local authorities gives it an obvious strength to innovate in the filtration and solidification of new pollutants (natural esters FR3-COPPER, synthetic esters MIDEL7131) and find the solution for which you need.
